ST-1530L-DZ > 지그재그 재봉기

본문

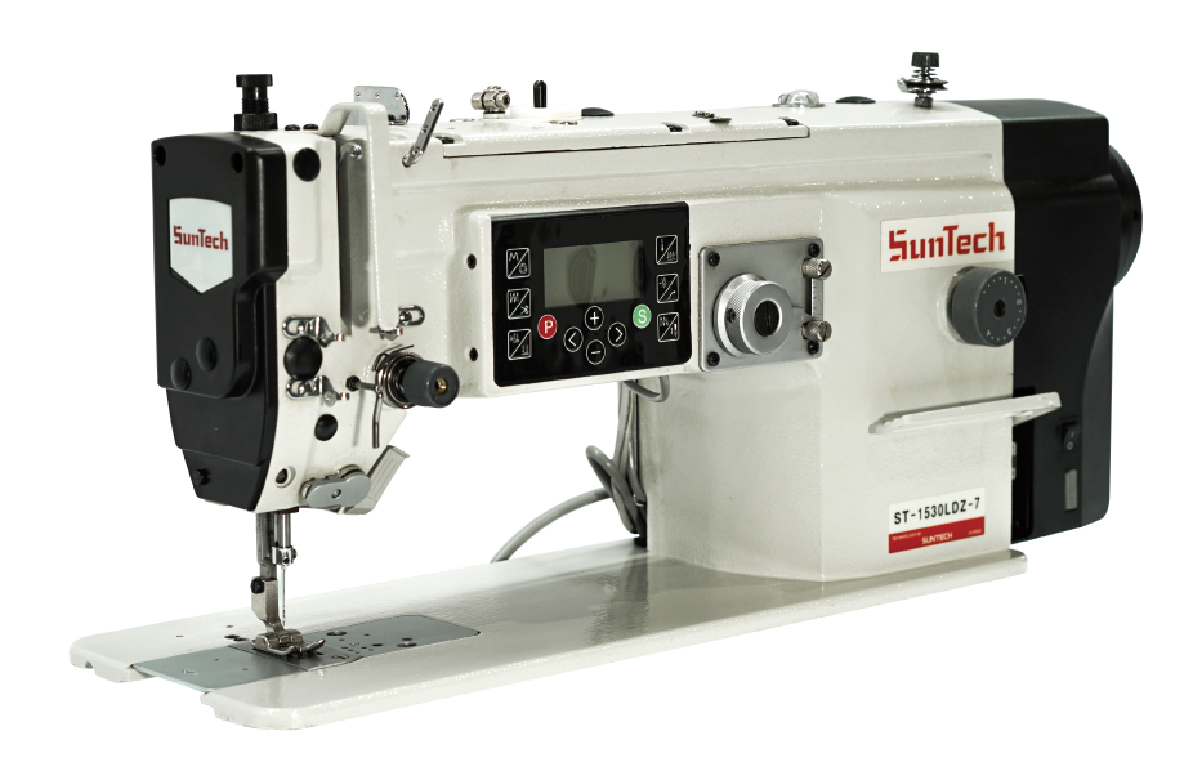

1-NEEDLE FLAT BED, DIRECT-DRIVE ZIGZAG SEWING MACHINE

아래 양식에 내용을 입력하시어 전송하시면 최대한 신속히 연락드리도록 하겠습니다.

■ MODEL CODE

■ DETAILED INFORMATION

■ SPECIFICATION

MODEL		ST-1530L	ST-1530L-DZ	ST-1533L-DZ	ST-1535
Application		Medium Heavy~Ultra Heavy Materials
Stitch Form		Lock Stitch 1-Needle	Lock Stitch 1-Needle	Lock Stitch 2-Needle	Lock Stitch 2-Needle
Neeedle		DP x 17 (#14~#23)	DP x 17 (#14~#23)	DP x 17 (#14~#23)	DP x 17 (#14~#23)
Maximum sewing speed		2,000 spm	2,000 spm	2,000 spm	2,000 spm
Maximum Stitch length		10.0 mm	10.0 mm	10.0 mm	10.0 mm
Maximum Zigzag Width		10.0 mm	10.0 mm	10.0 mm	10.0 mm
Lift of the Presser Foot (Manual)		16.0 mm	16.0 mm	16.0 mm	16.0 mm
Thread Take-up Stroke		74.5 mm	74.5 mm	74.5 mm	74.5 mm
Needle Bar Stroke		36.0 mm	36.0 mm	36.0 mm	36.0 mm
Feed type		Bottom Feed	Bottom Feed	Bottom Feed	Upper & Lower Feed
Hook	Type	Rotary Large Hook	Rotary Large Hook	Rotary Large Hook	Rotary Large Hook
Hook	Direction	Horizonal	Horizonal	Horizonal	Horizonal
Lubrication System		Automatic-Lubrication	Automatic-Lubrication	Automatic-Lubrication	Automatic-Lubrication
Auto Trimmer		X	X	X	X
Automatic Backtacking		X	X	X	X
Automatic Up Foot Lifter		X	X	X	X
Needle Up-Down		O (Saving Motor) / X (Clutch Motor)	O	O	O (Saving Motor) / X (Clutch Motor)
Motor		Saving Motor / Clutch Motor	Direct Motor	Direct Motor	Saving Motor / Clutch Motor
Power		Single phase 220V	Single phase 220V	Single phase 220V	Single phase 220V
