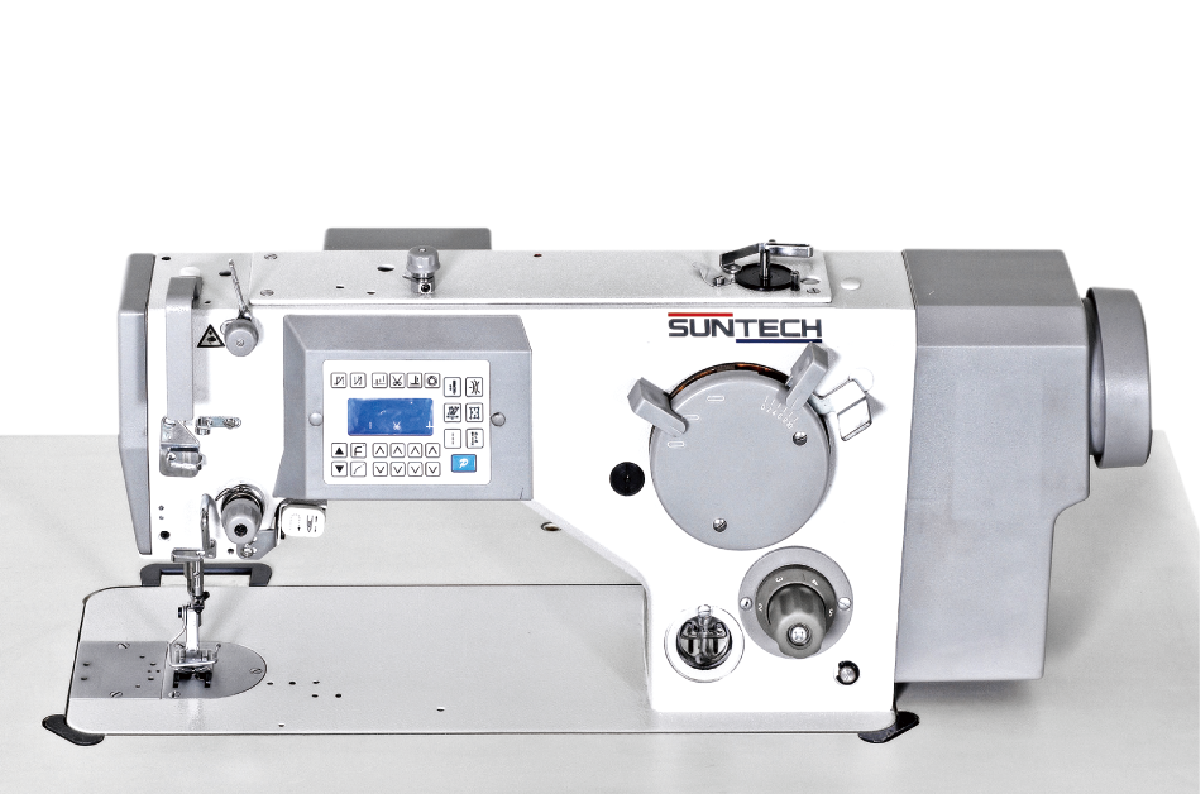

ST-2150M > 지그재그 재봉기

Zigzag Sewing Machine.

본문

1-NEEDLE, CYLIINDER BED, UPPER & LOWER FEED ZIGZAG SEWING MACHINE

아래 양식에 내용을 입력하시어 전송하시면 최대한 신속히 연락드리도록 하겠습니다.

■ MODEL CODE

■ DETAILED INFORMATION

■ SPECIFICATION

MODEL		ST-2150M
Application		Medium Heavy~Ultra Heavy Materials
Stitch Form		Lock Stitch 1-Needle
Neeedle		DP x 17 (#14~#23)
Maximum sewing speed		2,000 spm
Maximum Stitch length		5.0 mm
Maximum Zigzag Width		5.0 mm
Lift of the Presser Foot	Manual	10.0 mm
	Auto	10.0 mm
Thread Take-up Stroke		74.5 mm
Needle Bar Stroke		36.0 mm
Hook	Type	Rotary Treble Hook
	Direction	Horizonal
Lubrication System		Semi Automatic-Lubrication
Auto Trimmer		X
Automatic Backtacking		X
Automatic Up Foot Lifter		X
Needle Up-Down		O (Saving Motor) / X (Clutch Motor)
Motor		Saving Motor / Clutch Motor
Power		Single phase 220V
