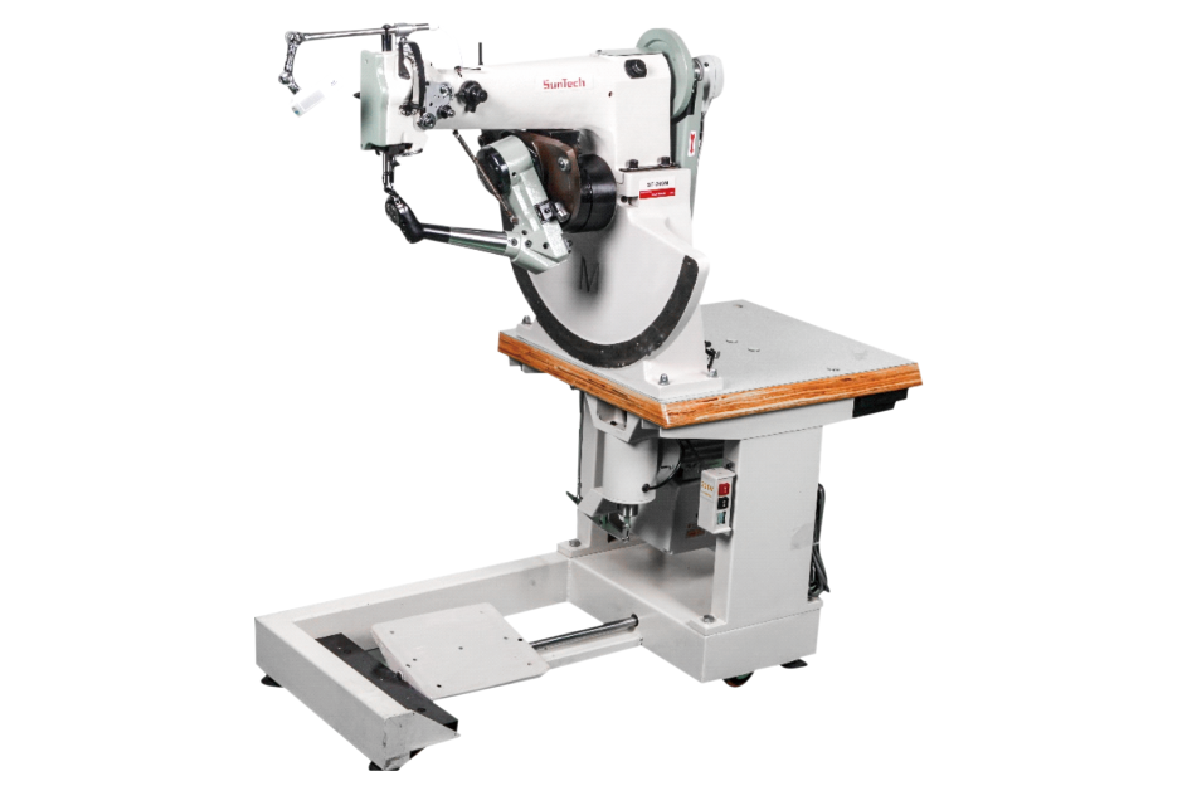

ST-269 ST-269
1-NEEDLE, DOUBLE THREAD LOCK STITCH SEATED TYPE SHOE-BORDER STITCHER
Product Contact
아래 양식에 내용을 입력하시어 전송하시면 최대한 신속히 연락드리도록 하겠습니다.
Product Description
■ MODEL CODE
|
■ DETAILED INFORMATION
■ SPECIFICATION
| MODEL | ST-269S | ST-269M | ST-269L | |
| Application | Heavy Materials | Heavy Materials | Heavy Materials | |
| Stitch Form | Lock Stitch 1-Needle | Lock Stitch 1-Needle | Lock Stitch 1-Needle | |
| Neeedle | CP x 5 (#18~#25) | CP x 5 (#18~#25) | CP x 5 (#18~#25) | |
| Maximum sewing speed | 800 spm | 800 spm | 800 spm | |
| Maximum Stitch length | 12.0 mm | 12.0 mm | 12.0 mm | |
| Lift of the Presser Foot (Manual) | 7.0 mm | 7.0 mm | 7.0 mm | |
| Thread Take-up Stroke | 67.0 mm | 67.0 mm | 67.0 mm | |
| Needle Bar Stroke | 33.8 mm | 33.8 mm | 33.8 mm | |
| Hook | Type | Rotary Small Hook | Rotary Middle Hook | Rotary Large Hook |
| Direction | Vertical | Vertical | Vertical | |
| Lubrication System | Automatic-Lubrication | Automatic-Lubrication | Automatic-Lubrication | |
| Auto Trimmer | X | X | X | |
| Automatic Backtacking | X | X | X | |
| Automatic Up Foot Lifter | O | O | O | |
| Needle Up-Down | O | O | O | |
| Motor | Servo Motor | Servo Motor | Servo Motor | |
| Power | Single phase 220V | Single phase 220V | Single phase 220V | |
