General Sewing Machine.

본문

Product Contact

아래 양식에 내용을 입력하시어 전송하시면 최대한 신속히 연락드리도록 하겠습니다.

Product Description

 MODEL CODE












 DETAILED INFORMATION










 SPECIFICATION

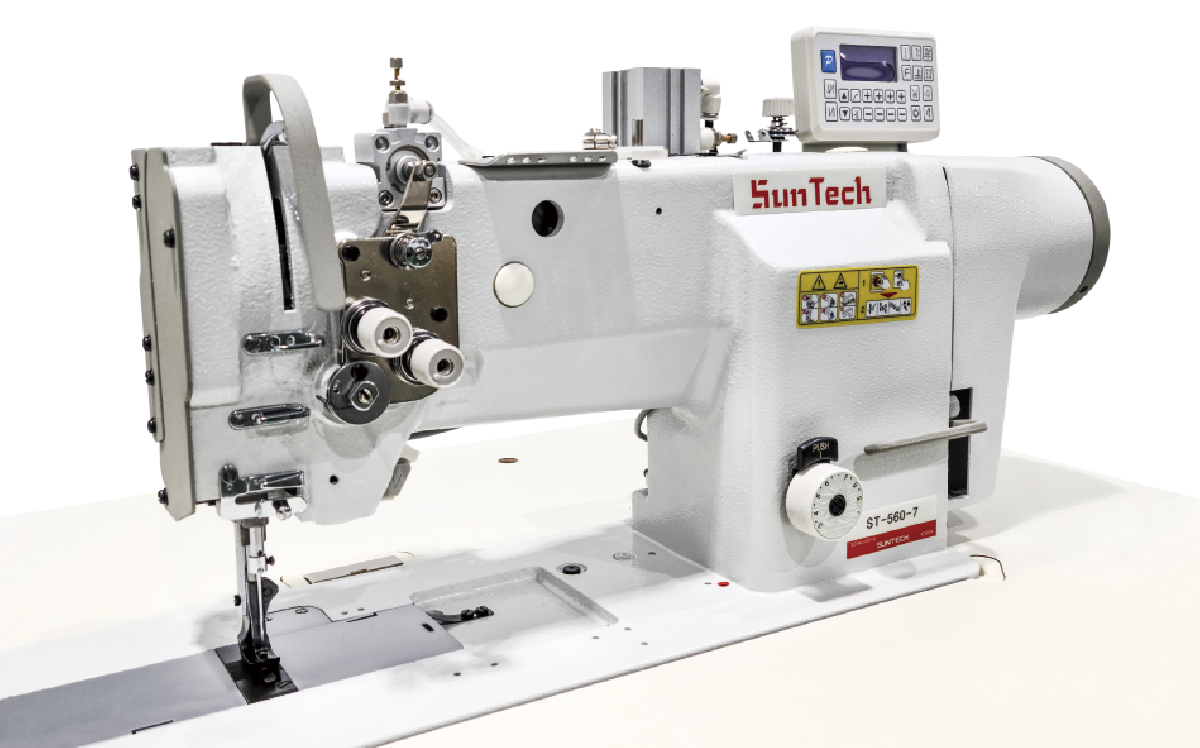

MODEL ST-560 ST-560-7 ST-562-7 ST-572
Application Medium Heavy~Ultra Heavy Materials
Stitch Form Lock Stitch 1-Needle Lock Stitch 1-Needle Lock Stitch 2-Needle Lock Stitch 2-Needle
Neeedle DP x 17 (#14~#25) DP x 17 (#14~#25) DP x 17 (#14~#25) DP x 17 (#14~#25)
Maximum sewing speed 1,500 spm 1,500 spm 1,500 spm 1,500 spm
Maximum Stitch length 9.0 mm 9.0 mm 9.0 mm 9.0 mm
Lift of the Presser Foot (Manual) 16.0 mm 16.0 mm 16.0 mm 16.0 mm
Thread Take-up Stroke 74.5 mm 74.5 mm 74.5 mm 74.5 mm
Needle Bar Stroke 36.0 mm 36.0 mm 36.0 mm 36.0 mm
Hook Type Rotary Hook Rotary Hook Rotary Hook Rotary Hook
Direction Horizonal Horizonal Horizonal Horizonal
Lubrication System Automatic-Lubrication Automatic-Lubrication Automatic-Lubrication Automatic-Lubrication
Auto Trimmer X O O X
Automatic Backtacking  X O O X
Automatic Up Foot Lifter X O O X
Feeding Device Unison feeding Unison feeding Unison feeding Unison feeding
Needle Up-Down O (Saving Motor) / X (Clutch Motor) O O O (Saving Motor) / X (Clutch Motor)
Motor Saving Motor / Clutch Motor Direct Motor  Direct Motor  Saving Motor / Clutch Motor
Power Single phase 220V Single phase 220V Single phase 220V Single phase 220V
