HOME PRODUCT 체인스티치 재봉기

Chain Stitch Sewing Machine.

본문

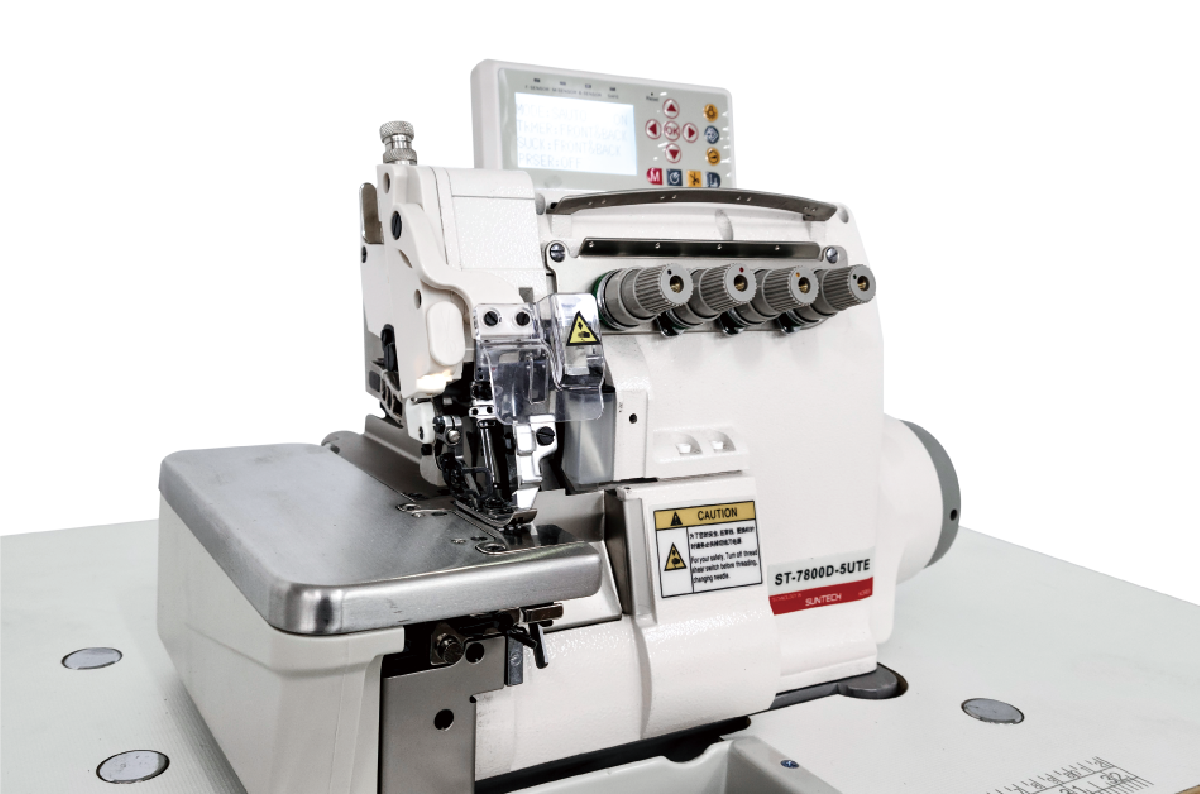

ST-6800D/7800-5UTE ST-6800D / 7800-5UTE

1(2)-NEEDLE, HIGH SPEED, DIRECT-DRIVE,
- OVERLOCK / INTERLOCK SEWING MACHINE

Product Contact

아래 양식에 내용을 입력하시어 전송하시면 최대한 신속히 연락드리도록 하겠습니다.

Product Description

 MODEL CODE












 DETAILED INFORMATION










 SPECIFICATION


MODEL ST-6800D-3 ST-6800D-4 ST-6800D-5 ST-7800-5UTE
Application Thin~Medium Heavy Materials
Stitch Form Overlock Stitch 1-Needle Overlock Stitch 2-Needle Interlock Stitch 2-Needle Interlock Stitch 2-Needle
Neeedle DP x 1 (#9~#23) DP x 1 (#9~#23) DP x 1 (#9~#23) DP x 1 (#9~#23)
Maximum sewing speed 6,500 spm 6,500 spm 6,500 spm 6,500 spm
Maximum Stitch length 3.8 mm 3.8 mm 3.8 mm 3.8 mm
Lift of the Presser Foot (Manual) 5.0 mm 5.5 mm 5.5 mm 5.5 mm
Thread Take-up Stroke 67.0 mm 67.0 mm 67.0 mm 67.0 mm
Needle Bar Stroke 33.8 mm 33.8 mm 33.8 mm 33.8 mm
Lubrication System Automatic-Lubrication Automatic-Lubrication Automatic-Lubrication Automatic-Lubrication
Auto Trimmer X X X X
Automatic Backtacking  X X X X
Automatic Up Foot Lifter X X X X
Needle Up-Down O O O O
Motor Direct Motor  Direct Motor  Direct Motor  Direct Motor
Power Single phase 220V Single phase 220V Single phase 220V Single phase 220V
