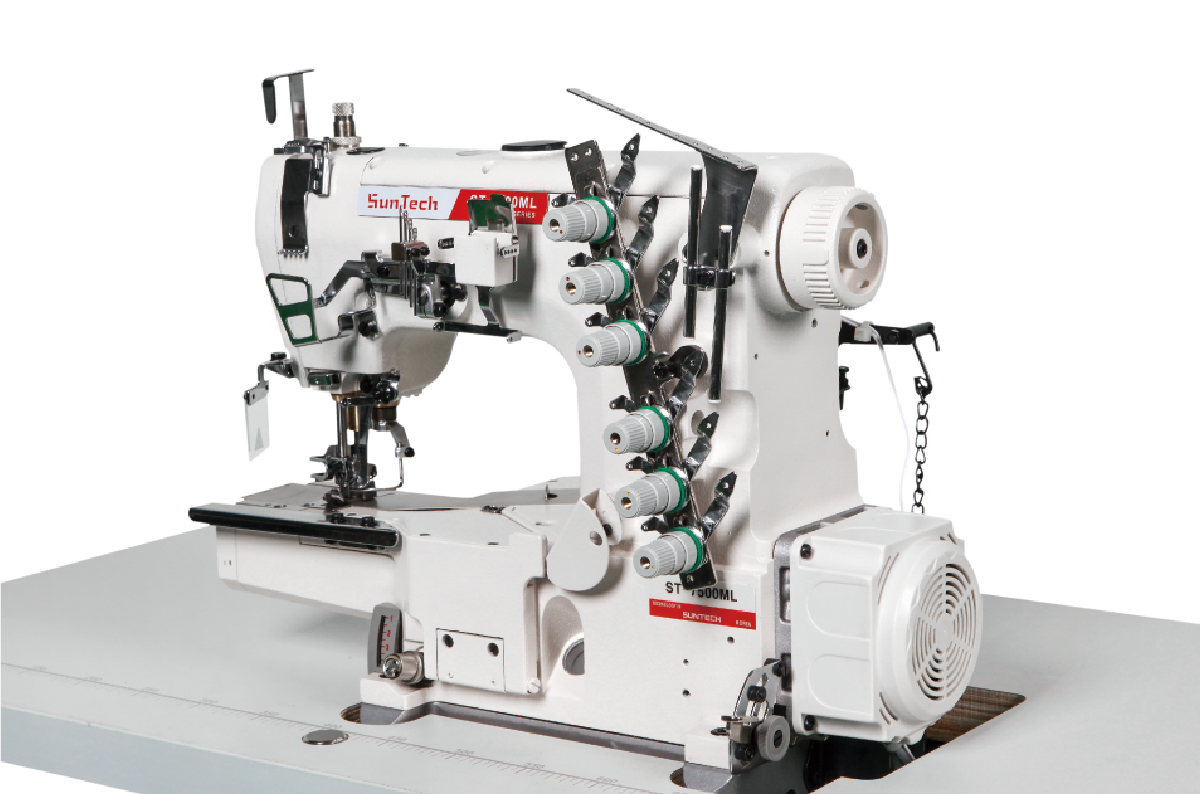

ST-8500M ST-7500ML
3(4)-NEEDLE CYLINDER BED, INTERLOCK SEWING MACHINE
Product Contact
아래 양식에 내용을 입력하시어 전송하시면 최대한 신속히 연락드리도록 하겠습니다.
Product Description
■ MODEL CODE
|
■ DETAILED INFORMATION
■ SPECIFICATION
| MODEL | ST-7500H | ST-7500ML-3 | ST-7500ML-3S | ST-7500ML-4S |
| Application | Medium Materials | |||
| Stitch Form | Interlock Stitch 4-Needle | Interlock Stitch 3-Needle | Interlock Stitch 3-Needle | Interlock Stitch 4-Needle |
| Neeedle | UY x 128 (#9~#23) | UY x 128 (#9~#23) | UY x 128 (#9~#23) | UY x 128 (#9~#23) |
| Maximum sewing speed | 5,500 spm | 5,500 spm | 5,500 spm | 5,500 spm |
| Maximum Stitch length | 3.6 mm | 3.6 mm | 3.6 mm | 3.6 mm |
| Lift of the Presser Foot (Manual) | 7.0 mm | 7.0 mm | 7.0 mm | 7.0 mm |
| Distance between Needles | 6.0 ~ 6.4 mm | 5.6 ~ 6.4 mm | 5.6 ~ 6.4 mm | 7.0 mm |
| Thread Take-up Stroke | 67.0 mm | 67.0 mm | 67.0 mm | 67.0 mm |
| Needle Bar Stroke | 33.8 mm | 33.8 mm | 33.8 mm | 33.8 mm |
| Lubrication System | Automatic-Lubrication | Automatic-Lubrication | Automatic-Lubrication | Automatic-Lubrication |
| Auto Trimmer | X | X | X | X |
| Automatic Backtacking | X | X | X | X |
| Automatic Up Foot Lifter | X | X | X | X |
| Needle Up-Down | O | O | O | O |
| Motor | Direct Motor | Direct Motor | Direct Motor | Direct Motor |
| Power | Single phase 220V | Single phase 220V | Single phase 220V | Single phase 220V |
